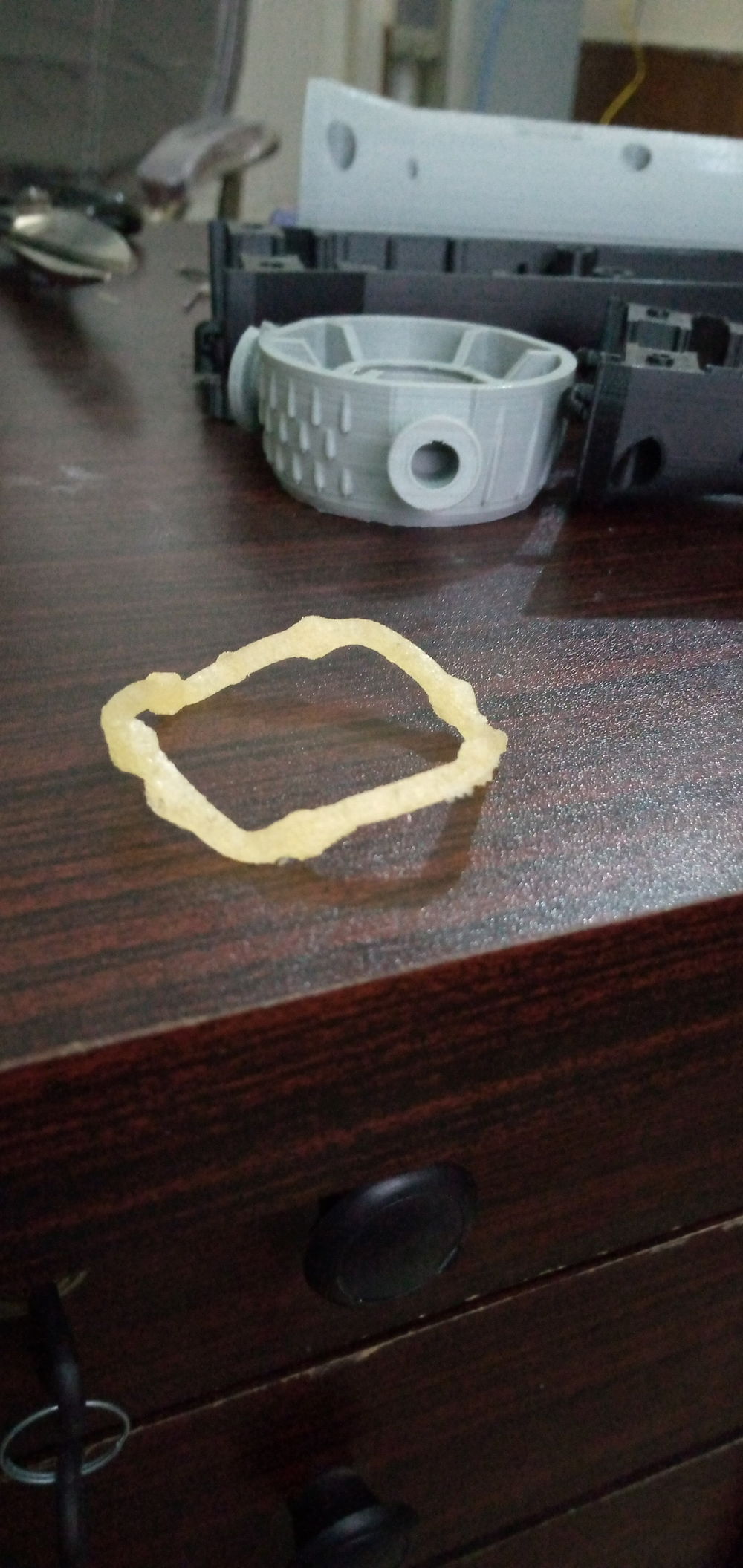

Ring after being tested in the prototype.

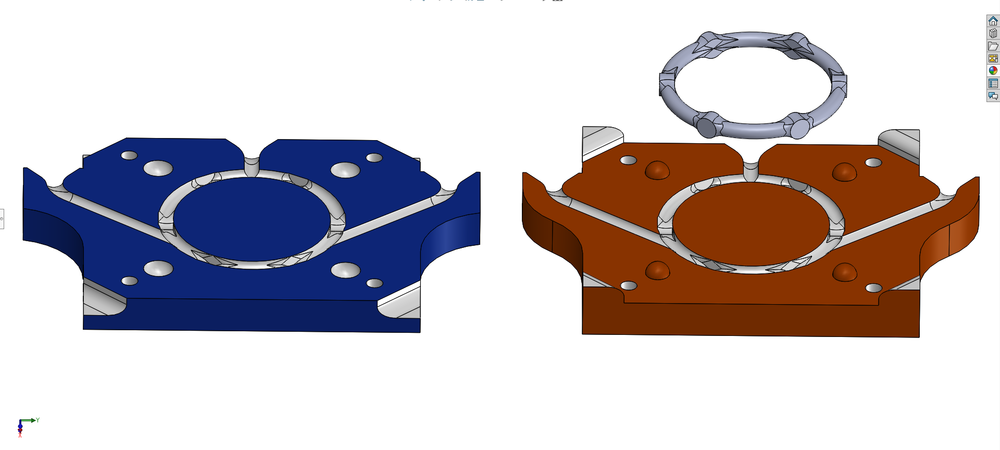

CAD design of 3d printable molds in SolidWorks

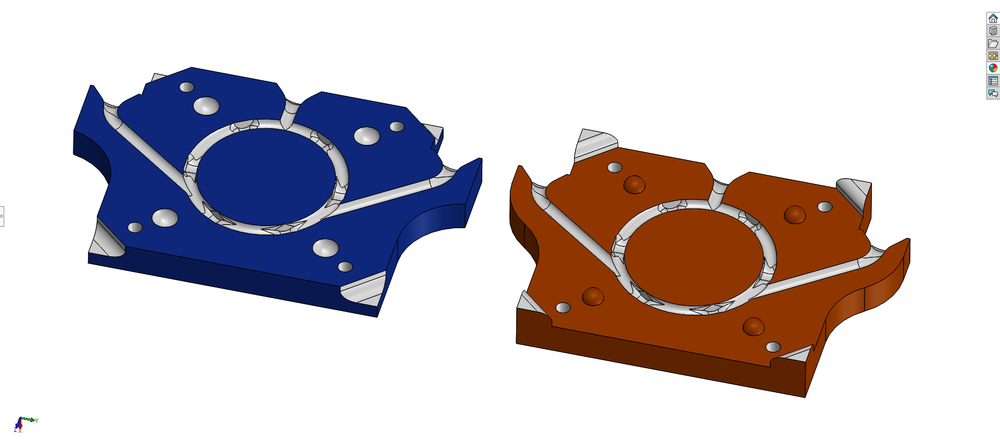

CAD design in SolidWorks

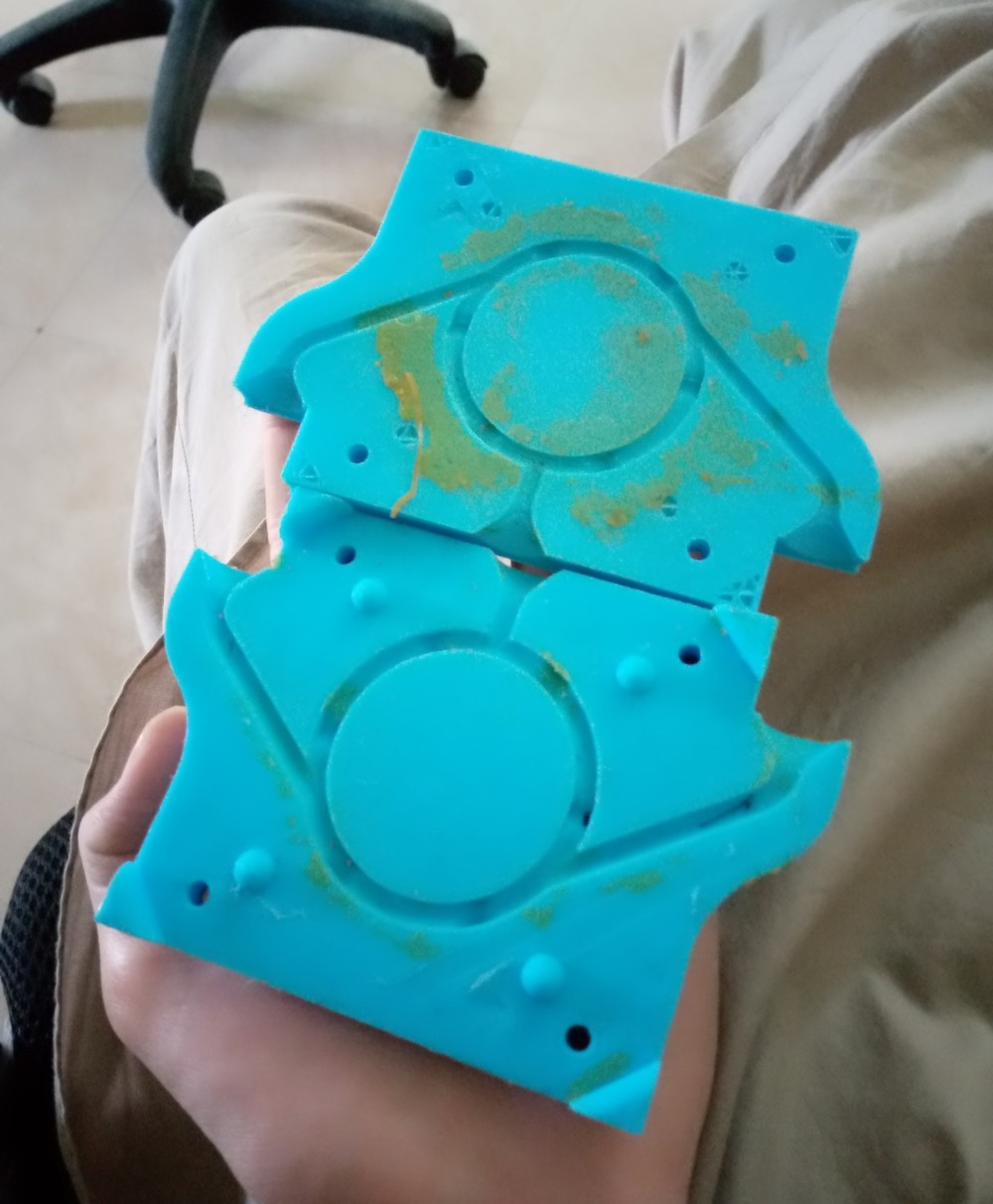

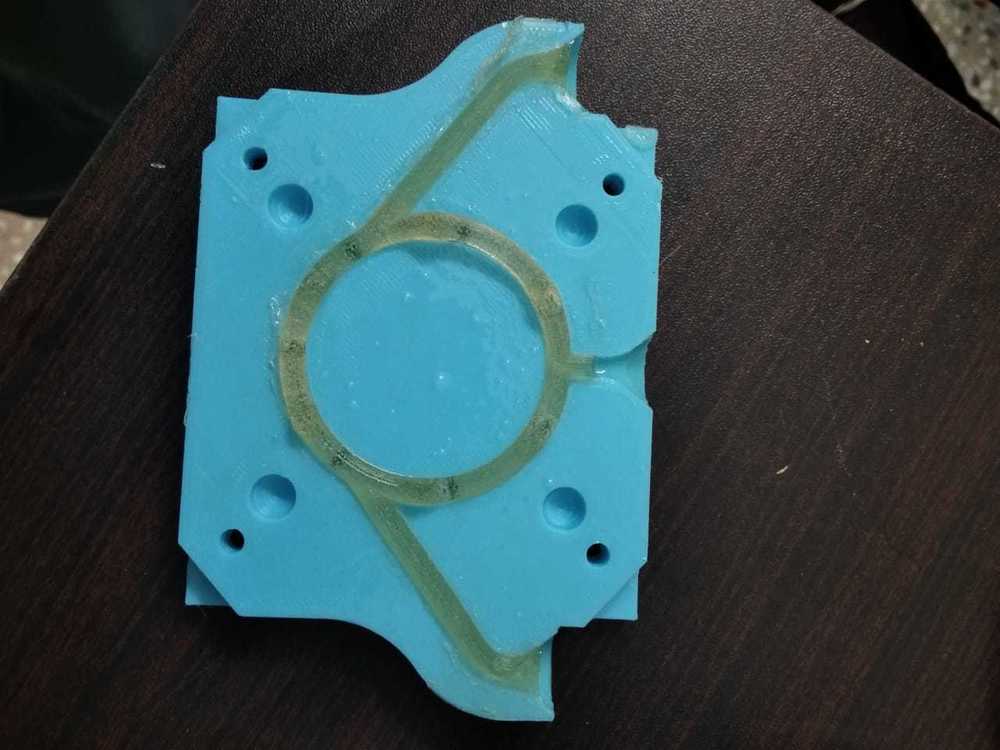

3d printed mold and the ring casted in it
Material of the plastic: PLA

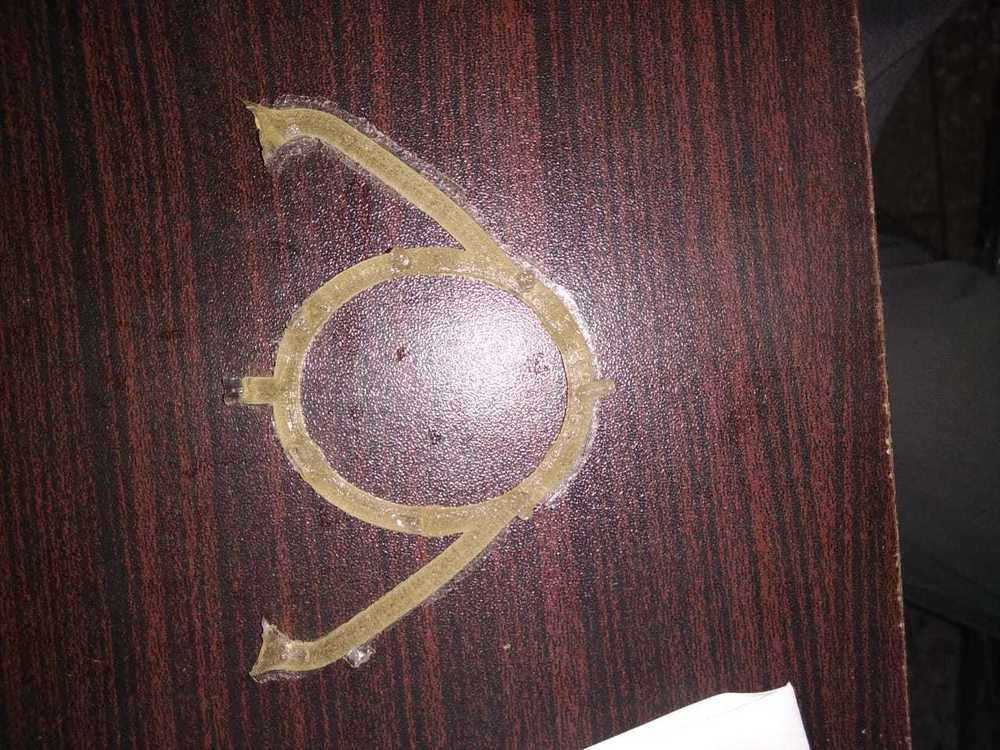

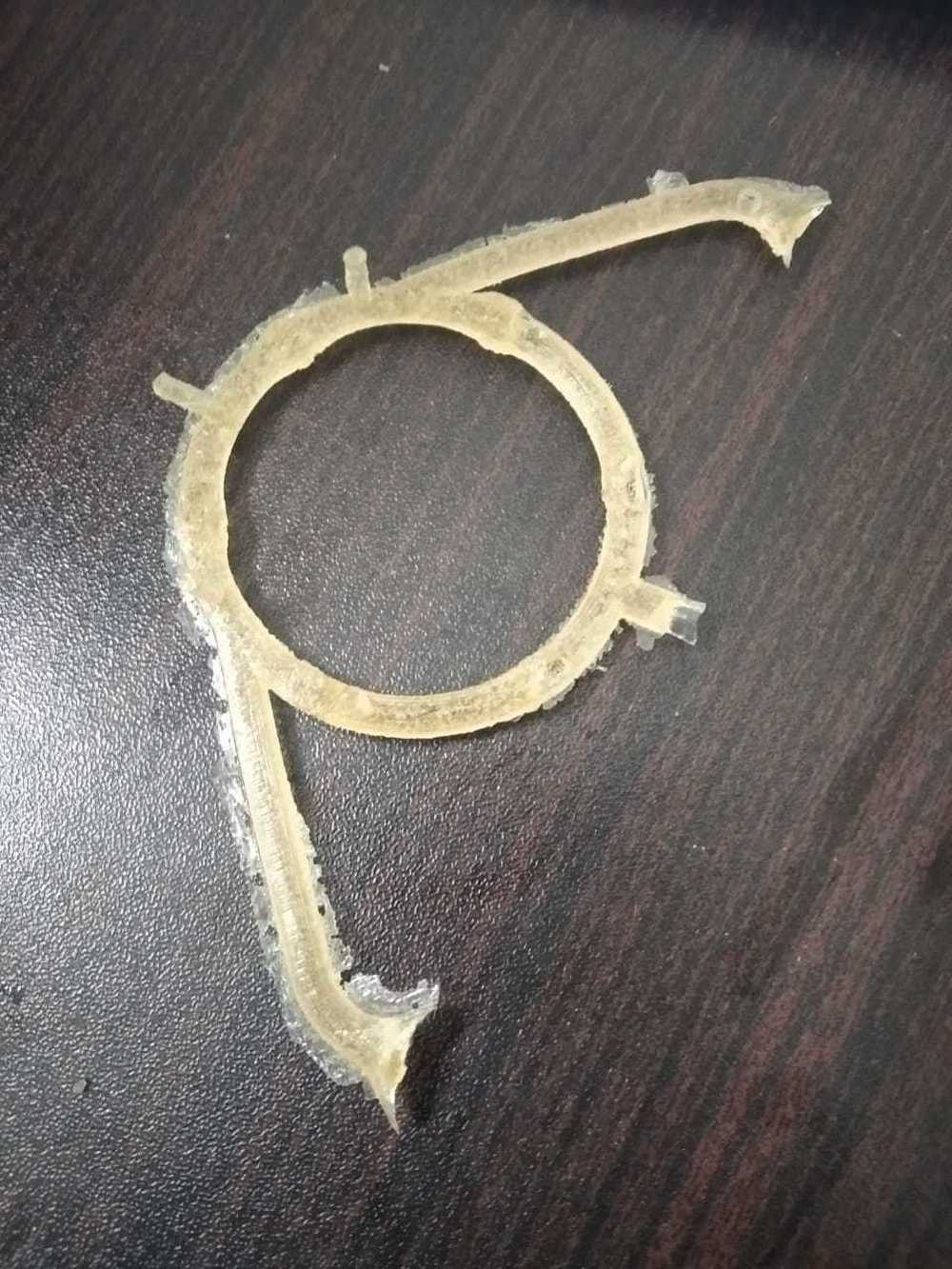

Flexible Ring right after being casted in molds

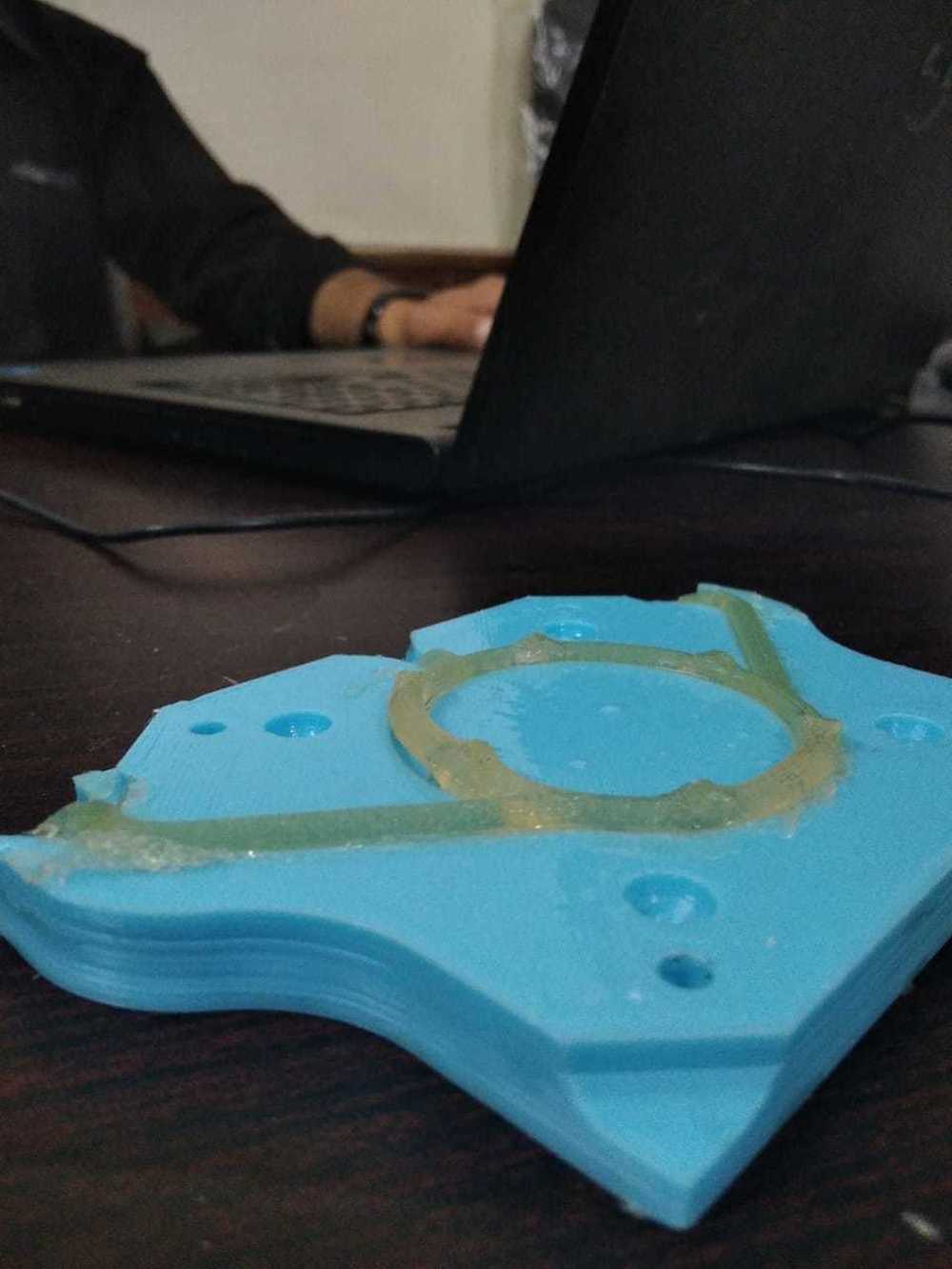

PLA 3d printed plastic mold
Project descriptionA custom Ring with 6 grab holes was needed to function in a medical device and the best option to make this was by casting it using 3d printed molds.
These plastic molds were designed in SolidWorks. Due to the small diameter of the ring and high viscosity of the casting plastic, I needed to make special design so that the liquid reaches all around as you can see in the pictures attached.
The pictures attached show the designed molds for this purpose and also the ting which was casted in it.
